Drainage Solutions

The Atlantis drainage system is the company's icon system, created in 1986 to facilitate the use of green roofs on roofs and walls of buildings, solves the disadvantage of adding a heavy structure to support plants and provides a method of effective water filtration. Our products have become a standard for the construction and landscaping industry, because it represents a structurally strong system, with a highly effective drain, within a lightweight structure.

The wide range of Atlantis Flo-Cell®, Flo-Wall®, Flo Log® and, Flo Pipe® products make this system versatile and suitable for many applications, including drainage systems for water infiltration of sports fields, civil works, retaining walls, concrete slabs, vegetated parking lots, pavement drainage and landscaping applications.

The system is also designed for Sustainable Urban Water Design (WSUD) applications and provides an ideal solution to increase the permeability of surface areas by reducing flow over the ground, facilitating recharge of groundwater.

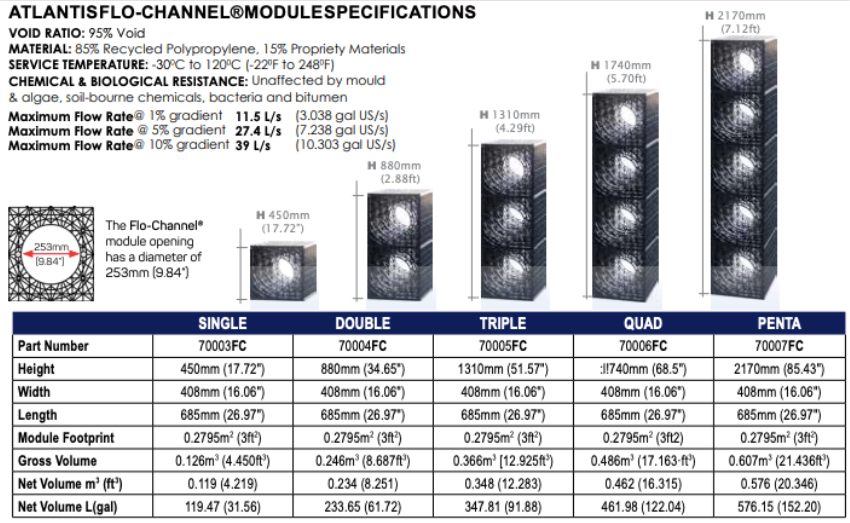

Flo-Channel®

For underground drainage & channel applications…
The Atlantis Flo-Channel® is a high flow rate structural modular channel system that provides designers with an effective product to facilitate the design of sustainable urban drainage applications and address water quality.

The Atlantis Flo-Channel® and the ability to move water at a high flow rate is ideal for sustainable urban drainage applications such as swales, bio filters, trench drainage and many more applications.

The Flo-Channel ® is a rigid product constructed from 4 exterior panels and either 4, 5, 7 or 9 interior stabilizers that vary the strength of the modules to suit the deign life of the project. The design enables loads to be applied from all angles with an even distribution of loads applied to the modules.

The product is modular in nature and can be scaled for the application providing engineers with flexibility in design.

Water Management in Sports Fields

The Atlantis system offers a simple and straightforward solution: it allows the infiltration of rainwater through a permeable surface and allows its capture and conduction to underground reservoirs to reuse the water to recharge the aquifers.

The Atlantis SPORTSDRYT playing field system guarantees rapid and efficient drainage of the field even during the heaviest rainfall, and ensures adequate irrigation during dry periods. The system quickly drains the water and stores it in underground storage tanks for year-round use.

Water Drainage and Storage on Golf Courses

Water Drainage and Storage in Football Fields

The Perfect Solution for Leak Control.

RAPID DRAINAGE: The Atlantis Flo-Wall® series is ideal for rapid drainage of saturated soil. The Flo-Wall® series is suitable for applications such as underground car parks, basements, retaining walls, and seepage trenches.

YÜKSEK MUKAVEMET: Atlantis Flo-Wall® serisi, uzun vadeli drenaj performansı sağlamak için zamanla ezilmeyecek yüksek basınç dayanımına sahiptir.

HIGH STRENGTH: The Atlantis Flo-Wall® series features high compressive strength that won't crush over time, ensuring long-term drainage performance.

ENDLESS LENGTH: The Atlantis Flo-Wall® series can be easily connected to create the required lengths for your project. Each Flo-Wall® features a geotextile overlap to allow for proper tape sealing of each joint.

Flo-Wall® Wall Drainage Panels

HIGH DURABILITY, HIGH FLOW WALL DRAINAGE - Atlantis

The Flo-Wall® series is ideal for rapid drainage of saturated soil. It is suitable for a variety of applications including underground car parks, basements, retaining walls, and seepage trenches. It has high compressive strength. It will not crush over time and will provide long-term drainage performance.

Flo-Wall® Applications:
